Product Detail
GYFXY
GYFXY
产品详情

GYFXY

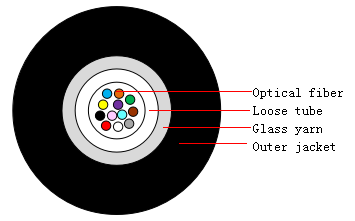

Product Structure:


Product Description:

GYFXY (Structurewith central tube, Non-metal strength member, PE sheath)

Standards:

YD/T 769-2010  Outdoor central tube optical cable fortelecommunications

Technical Parameters(Typical Value):

Fiber Count

Structure

Diameter

(mm)

Weight (kg/km)

Tensile(N)

Long    Short term    term

Crush(N)

Long    Short term    term

Bending Radius(mm)

Static  Dynamic

2-12

Central tube

6. 9

36. 5

600

1500

300

1000

10D

20D

16-18

Central tube

7. 0

38. 6

600

1500

300

1000

10D

20D

20-24

Central tube

7. 2

40. 1

600

1500

300

1000

10D

20D

Note  1.D refers to the cable diameter;

     2.The relevant technical Parameters canbe adjusted according to the customer’s demands;

     3.The design flame resistance,anti-rodent, termite resistant cable according to the customer’s demands.
